Frequency Components
Clock Oscillators
| Clock Oscillators | ||||||
|---|---|---|---|---|---|---|
PRODUCT |
OUTPUT |
SUPPLY VOLTAGE |
FREQUENCY RANGE |
DIMENSIONS | PHOTO |
RoHS |
| V | MHz | mm | ||||
| RCO2016 PDF Spec |
CMOS | 1.8, 2.5, 3.3 | 1.500 to 50.000 | 2.0 x 1.6 |  |
|
| RCO2520 PDF Spec |
CMOS | 1.8, 2.5, 3.0, 3.3, 5.0 | 0.750 to 75.000 | 2.5 x 2.0 | |
|
| RCO3225 PDF Spec |
CMOS | 1.8, 2.5, 3.3 | 1.544 to 60.000 | 3.2 x 2.5 | |
|
| RCO5232 PDF Spec |
CMOS | 1.8, 2.5, 3.3, 5.0 | 1.544 to 1156.000 | 5.2 x 3.2 | |
|
| RCL2520 PDF Spec |
LVDS | 2.5, 3.3 | 5.000 to 175.000 | 2.5 x 2.0 | |
|
| RCL3225 PDF Spec |
LVDS | 2.5, 3.3 | 5.000 to 175.000 | 3.2 x 2.5 |
| |

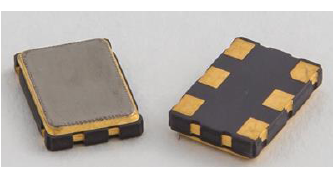

| RCL5032 PDF Spec |
LVDS | 2.5, 3.3 | 5.000 to 250.000 | 5.0 x 3.2 |
| |
| RCP2520 PDF Spec |
LVPECL | 2.5, 3.3 | 6.000 to 175.000 | 2.5 x 2.0 | |
|
| RCP3225 PDF Spec |
LVPECL | 2.5, 3.3 | 5.000 to 175.000 | 3.2 x 2.5 |
| |
| RCP5032 PDF Spec |
LVPECL | 2.5, 3.3 | 6.000 to 175.000 | 5.0 x 3.2 |
| |
